Product Description

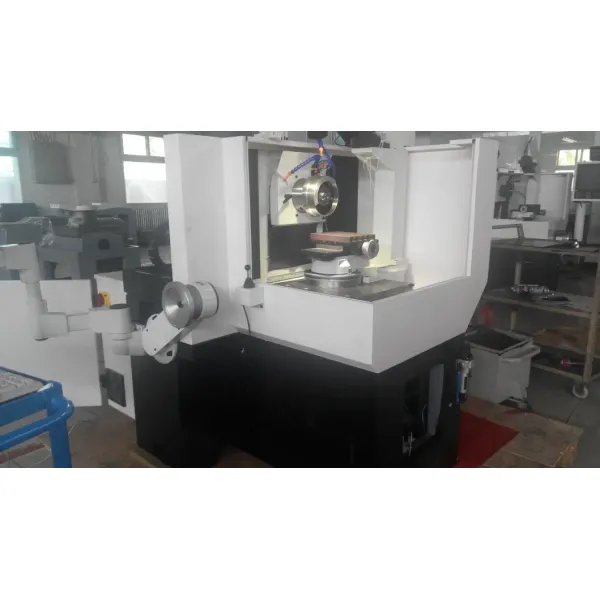

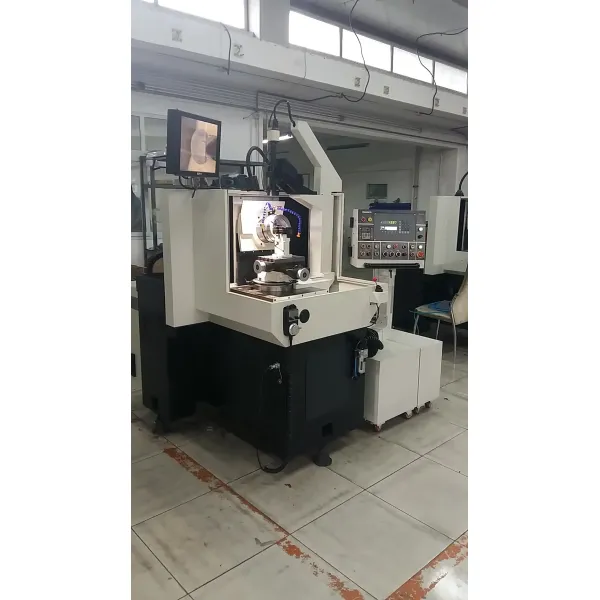

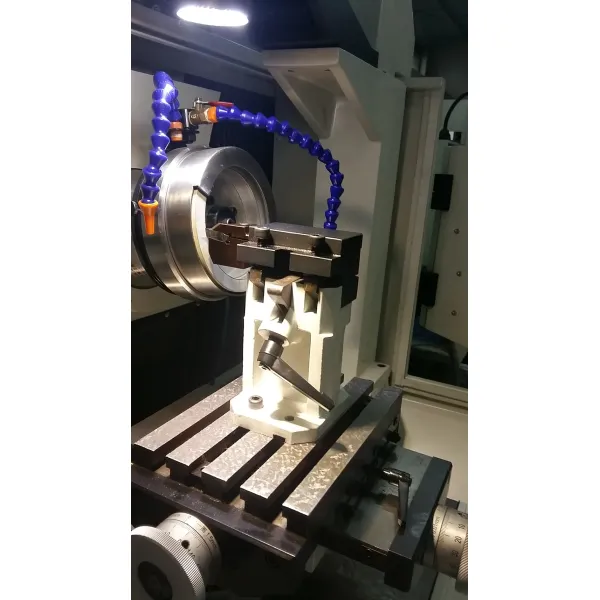

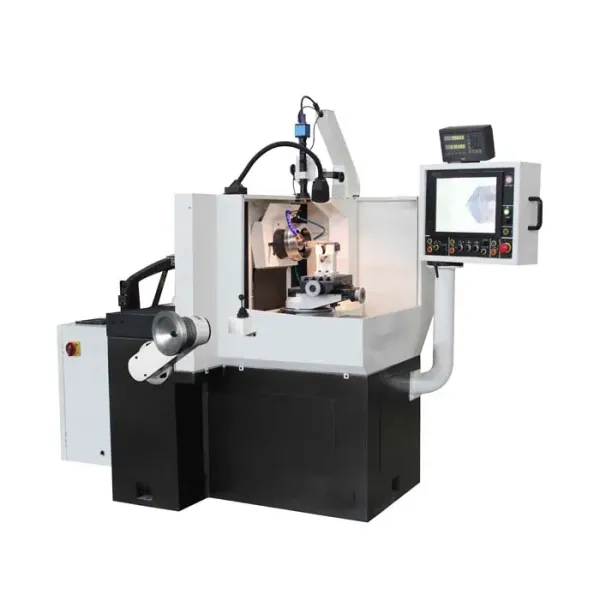

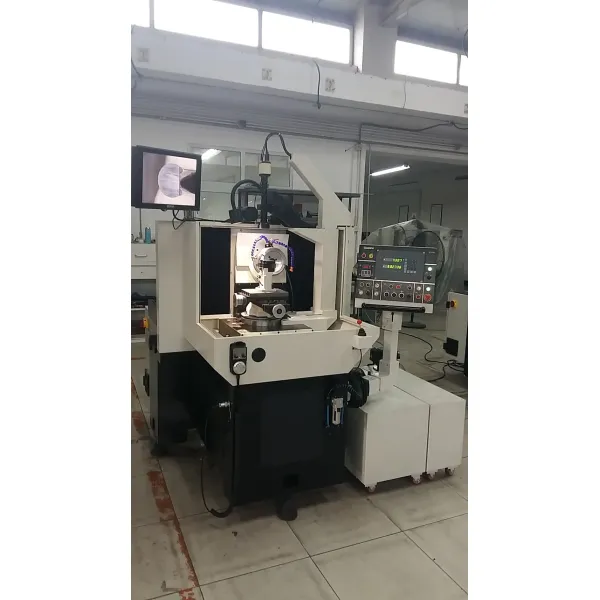

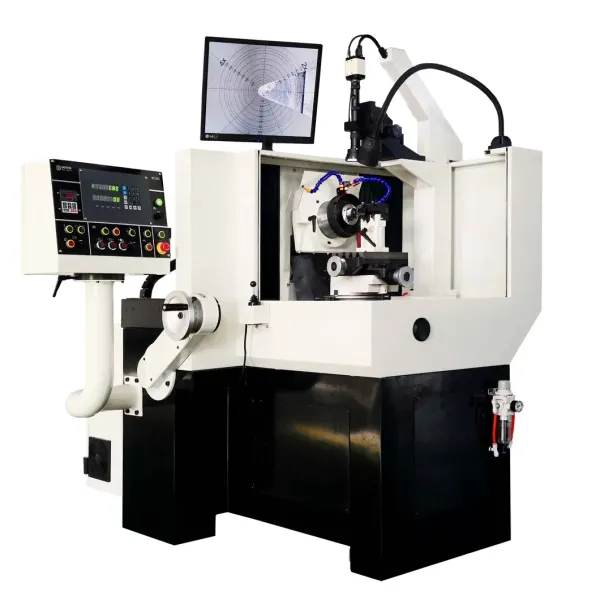

1. BT-150H PCD CBN Tool Grinder is the manual machine. Somewhat similar to another machine-BT-150J. This machine is suitable for grinding PCD&PCBN inserts. Also, you can choose two kinds of grinding wheel that you need to grind tools.
2. BT-150H PCD CBN Tool Grinder, the PLC can control the grinding head swing, stable and no vibration. The electrically controlled oscillating system is freely adjustable for the oscillating frequency, the oscillating amplitude and the oscillating position via intelligent components. The rotary axis can be used to realize the real-time reading of the angle value through the built-in encoder, and the accuracy is graded. The back angle is adjusted by the motor. There are two ways of manual adjustment and automatic adjustment. The integrated reading of the scale and the sub-scale can achieve an accuracy of plus or minus 10 points.
After Sales Service
1. In order to facilitate users to operate the machine, we also provide the instruction and parts manual, not including the quick-wear part;
2. One-year limited warranty;
3. Delivery time: 30 workdays after we received the deposit if any special requirement can be consulted;
5. Package: wooden case;
Our Advantages
1. The use of large screen: High-quality BT-150H PCD CBN tool grinder, displaying of the data of all coordinates and the tool image, located in front of the operating station, do not have to turn around and look up, as long as lifting eye, the operator can be coordinated to provide production, improving the efficiency of about 50%.
2. Grinding wheel main shaft angle is online-controlled by a servo motor. BT-150H PCD CBN tool grinder,the primary and secondary relief angle can be reground at one clamping and avoid the manual-operated error due to the online automatic adjustment.
3. Grinding wheel integration: BT-150H cutter grinding machine, only once clamping, finish and coarse grinding can be done on one grinding wheel. It makes the regrinding more efficient and more accurate. Also BT-150H PCD CBN tool grinder can grind tool.
