Product Description

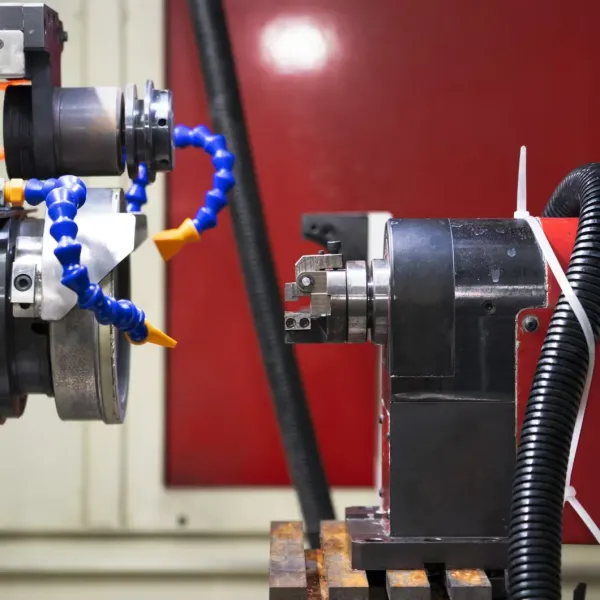

The BT-150DS is a six-axis CNC tool grinder consisting of the wheel oscillation axis (X-axis), workpiece feed axis (Y-axis), wheel vertical movement axis (Z-axis), workpiece horizontal rotation axis (B-axis), wheel tilt axis (C-axis), and workpiece indexing axis (A-axis). This machine is suitable for the production and regrinding of ultra-hard tools such as PCD and CBN inserts in medium to large batches. Once centering is completed, the system achieves the ideal state of "constant-pressure grinding and flexible feed" with the push of a button. The workpiece indexing axis (A-axis) enables the machine to grind rotary tools and adopts the BT30 standard interface, allowing for the selection of corresponding tool holders or mandrels based on the tool type, offering greater flexibility in tool clamping. When paired with specialized insert fixtures, it enables automatic negative chamfering of CBN inserts.
Product Parameters
|
Spindle and Grinding Wheel
|
|
Diameter of grinding wheel
|
150mm
|
|
Grinding wheel center hole
|
40mm
|
|
Power of grinding spindle
|
5KW
|
|
Adjustable range of grinding speed(RPM)
|
1000～8,000 RPM
|
|
Servo motor swing, adjustable swing frequency
|
0 ~ 60 times/min
|
|
X-axis
|
300mm
|
|
Y-axis
|
100mm
|
|
Z-axis
|
-125mm~125mm
|
|
Angle of the grinding wheel spindle in the vertical plane (C-axis)
|
-25°-25°
|
|
B-axis
|
270°
|
|
A-axis
|
360°
|
|
Tool work-head
|
|
Linear axis display resolution
|
0.001mm
|
|
Rotation axis display resolution
|
0.001°
|
|
CCD Monitoring System
|
|
Max Magnification of Optical Microscope
|
0.7-4.5times
|
|
Magnification of CCD Measuring System, roughly
|
70times
|
|
Dimensions and weight
|
|
Coolant Tank with Filter Paper
|
About70L
|
|
Overall Dimensions L*W*H
|
1890*1650*1980mm
|
|
Overall Weight With Coolant Tank
|
2400kg
|
|
Power supply
|
|
Electrical Supply
|
12KW
|
|
Voltage Requested
|
380V/3 Phase/50Hz
|
