Diamond (PCD) Insert Tool Grinder

Name: Diamond PCD Insert Tool Grinder
Brand: DEMINA
Price: 1 USD

Wholesale Diamond (PCD) Insert Tool Grinder from china suppliers

Type : Tool Grinding Machine

Brand Name : DEMINA

Payment Terms : T/T

Specification : 1890mm*1650mm*1980mm

Model NO. : BT-150N

Transport Package : Wooden Case

Origin : China

Trademark : DEMINA

MOQ : 1 Piece

Condition : New

Place of Origin : CHINA

Precision : High Precision

Processing Object : cutting tools

Delivery Time : 30 DAYS

Automatic Grade : Semiautomatic

Controlling Mode : Manual

Model Number : BT-150N

Production Capacity : 50 Sets Per year

HS Code : 8460390000

Abrasives : Grinding Wheel

Packaging Details : WOODEN CASE

Certification : ISO 9001

Supply Ability : 50 SETS PER YEAR

Contact Now

Description

The BT-150N is a 3-axis CNC tool grinder consisting of the grinding wheel oscillation axis (X-axis), the workpiece rotation axis in the horizontal plane (B-axis), and the workpiece feed axis (Y-axis). This machine is suitable for the production of medium and large batches of carbide inserts, PCD inserts, and CBN inserts. Once centering is completed, grinding can be performed automatically with the push of a button, reducing labor costs. Due to the high hardness of diamond materials (PCD) and the rapid wear of the grinding wheel, the system accepts input of the wear amount and compensates for it, maintaining long-term dimensional accuracy. The machine has manual and automatic switching functions, catering to both small/medium batch and large batch production needs. The manual function is particularly suitable for manufacturing and grinding non-standard inserts.

Main Parameters

Spindle and Grinding Wheel
Diameter of Grinding wheel	150mm
Grinding wheel center hole	40mm
Power of grinding spindle	3kW
Adjustable range of grinding speed (RPM)	500 ~ 4,000RPM
Servo motor swing, adjustable oscillation frequency	0 ~ 60times/min
Grinding wheel movement range (X)	300mm
Changeable Clearance Angle	-5° ~ 25°
Tool work-head
Table movement range in feed direction	100mm
Rotation range of workpiece in horizontal plane	270°
Linear scale resolution	0.001mm
Rotary axis resolution	0.001°
CCD Monitoring System
Max Magnification of Optical Microscope	0.7 ~ 4.5 times
Magnification of CCD Measuring System, roughly	About 70times
Dimensions and weight
Coolant Tank with Filter Paper	About 70 L
Overall Dimensions LW H	189016501980mm
Overall weight with Coolant Tank	2400Kg
Power Supply and Dimensions
Electrical Supply	12kW
Voltage Requested	380V/Three phase/50Hz

Product Tags:

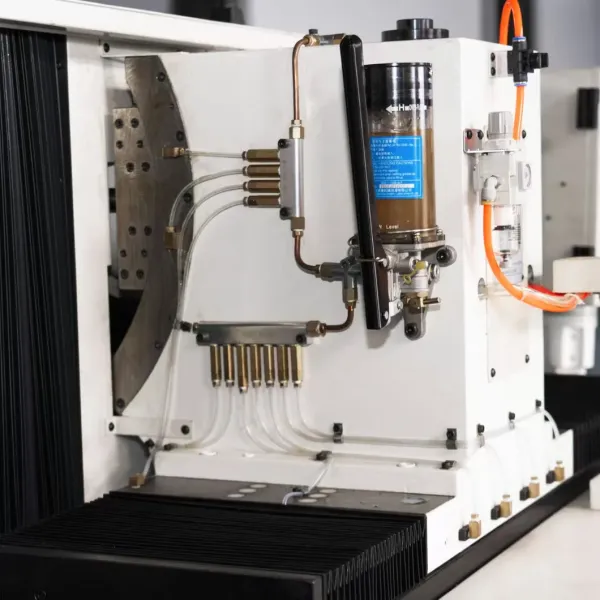

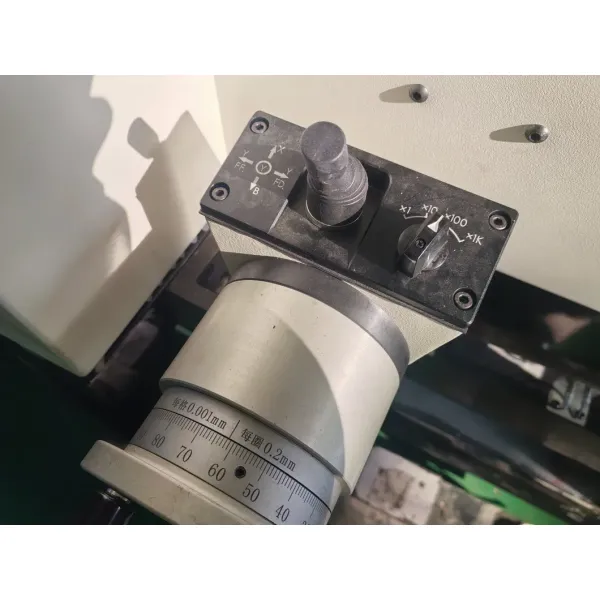

Diamond (PCD) Insert Tool Grinder Images
