Description

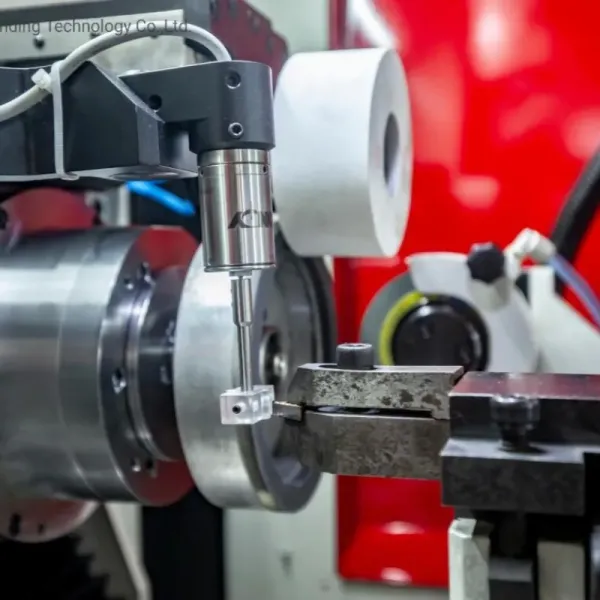

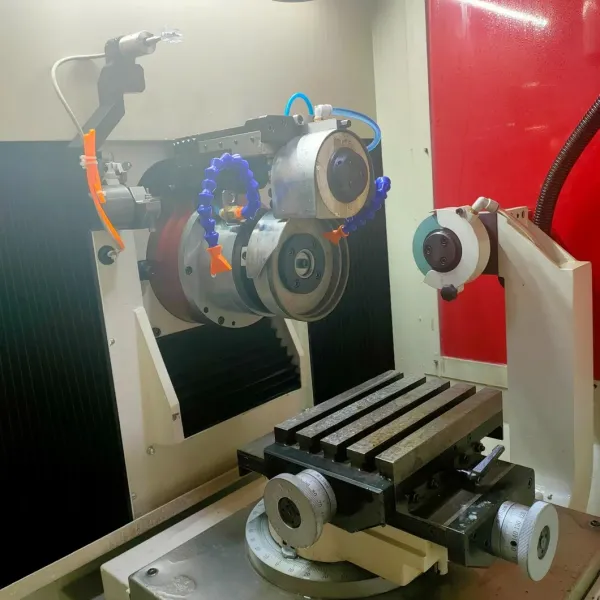

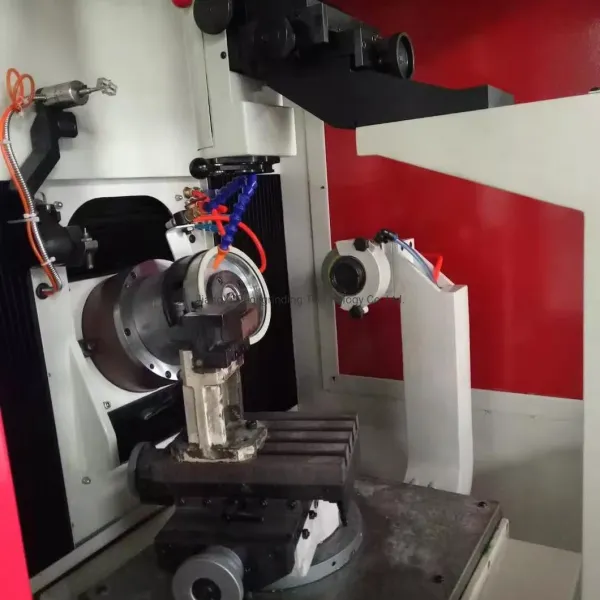

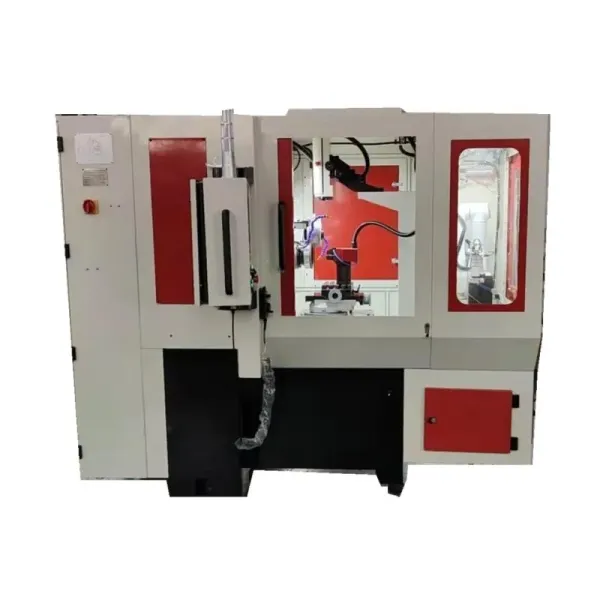

BT-150DZ is composed of five axes including the grinding wheel oscillation axis, the grinding wheel inclination axis, the workpiece horizontal rotation axis, the workpiece feed axis, and the robot arm. The machine tool is suitable for the production of medium and large quantities of carbide insert., PCD insert and CBN insert. Its unique vision inspection system and electric cross worktable enable automatic centering and positioning. Equipped with a six-axis robotic arm, it can perform fully automated loading and unloading, achieving unmanned, automated, 24-hour continuous production, significantly reducing labor costs.
Main Parameters
|
Spindle and Grinding Wheel
|
|
Diameter of Grinding wheel
|
150mm
|
|
Grinding wheel center hole
|
40mm
|
|
Power of grinding spindle
|
5KW
|
|
Adjustable range of grinding speed(RPM)
|
1000～8,000RPM
|
|
Servo motor swing, adjustable oscillation frequency
|
0~60times/min
|
|
Grinding wheel movement range(X )
|
300mm
|
|
Changeable Clearance Angle
|
-5°~25°
|
|
Tool work-head
|
|
Table movement range in feed direction
|
100mm
|
|
Rotation range of workpiece in horizontal plane
|
270°
|
|
Linear scale resolution
|
0.001mm
|
|
Rotary axis resolution
|
0.001°
|
|
CCD Monitoring System
|
|
Max Magnification of Optical Microscope
|
0.7~4.5 times
|
|
Magnification of CCD Measuring System, roughly
|
70times
|
|
Dimensions and weight
|
|
Coolant Tank with Filter Paper
|
About 70 L
|
|
Overall Dimensions L*W*H
|
1890*1650*1980mm
|
|
Overall Weight With Coolant Tank
|
2400Kg
|
|
Power Supply
|
|
Electrical Supply
|
12KW
|
|
Voltage Requested
|
380V/Three phase /50Hz
|
