Product Description

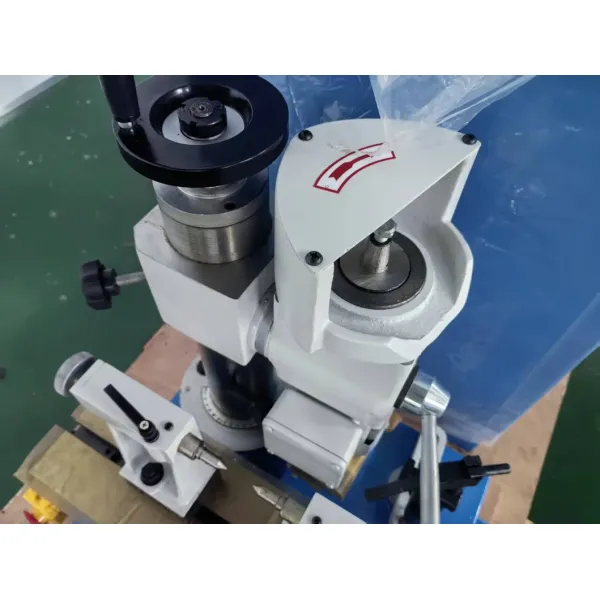

With the improvement of tool quality and tool cost, the grinding of drill bits and tools has become a common concern in the manufacturing industry.The economic universal cutter grinder BT200, which is newly launched, has a complete range of tools that can be repaired and grinds.The equipment is manufactured in China and sold in China for export.
The kinds of tools that can be sharpened are: spiral edge of milling cutter, end face edge of end milling cutter, ball head edge of end milling cutter, three-face milling cutter, front face of hobbing cutter, front and back Angle of tap cone, saw blade milling cutter, carving cutter, bit drilling Angle, bit transverse edge, turning tool, reamer, thin-wall drill and woodworking drill, etc.
Product Parameters
1.Maximum cutter diameter: 125 mm
2.Maximum cutter length: 320 mm
3.Table lateral movement: 300 mm
4.Table longitudinal movement: 150 mm
5.Distance from tool axis to table: 120 mm
6.Swing Angle of grinding head: ±40°
7.Motor power and speed: 180 watts, 2800 RPM
8.Size: 1090*720*930mm
9.Weight: 235 kg
Standard accessories
| No. |
Sample number |
Name |
Quantity |
| 1 |
1.1 |
Self-Starter D-00 |
1set |
| 2 |
1.2 |
Workhead F-00 |
1set |
| 3 |
1.3 |
Gradustor GF-00 |
1set |
| 4 |
1.4 |
Lathe tool fixture DF-00 |
1set |
| 5 |
1.5 |
Right tailstock |
1set |
| 6 |
1.6 |
Left tailstock |
1set |
| 7 |
1.7 |
Stopping device |
1set |
| 8 |
1.8 |
Three-jaw chuck K1180 |
1set |
| 9 |
1.9 |
Beam square location system |
1set |
| 10 |
1.10 |
Standard 60°Centre |
1set |
| 11 |
1.11 |
60° Half Centre |
1set |
| 12 |
1.12 |
60° Fine Centre |
1set |
| 13 |
1.13 |
Piece-Bowl type diamond wheel 125*32*32*5*3mm |
1set |
| 14 |
1.14 |
Piece-Disc type wheel 125*32*45mm |
1set |
| 15 |
1.15 |
Carbon grinding wheel 125*32*25 |
1set |
| 16 |
1.16 |
Piece-Cup type wheel 125*32*45 |
1set |
| 17 |
1.17 |
Grinding Wheel Sleeves DF-5 |
1set |
| 18 |
1.18 |
Grinding Wheel Sleeves DF-6 |
1set |
| 19 |
1.19 |
Grinding wheel cover I |
1set |
| 20 |
1.20 |
Grinding wheel cover II |
1set |
| 21 |
1.21 |
Parallel Pivot∮32 |
1set |
| 22 |
1.22 |
Parallel Pivot∮22 |
1set |
| 23 |
1.23 |
Parallel Pivot∮16 |
1set |
| 24 |
1.24 |
Ring screw |
1set |
| 25 |
1.25 |
Dividing head handle shaft |
1set |
| 26 |
1.26 |
Tool cabinet |
1set |
| 27 |
1.27 |
Fork wrench/hex wrench |
1set |
| 28 |
1.28 |
T-bolt |
1set |
