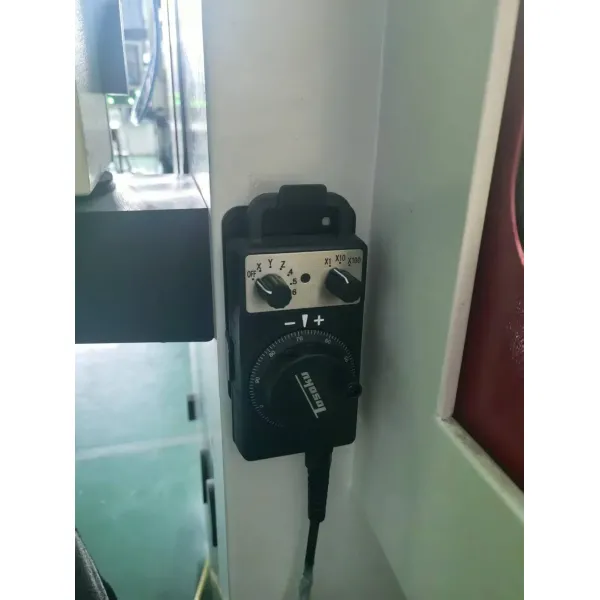

Fully Automatic CNC Diamond Tool Grinding Machine with 6-Axis Robot

Name: Fully Automatic CNC Diamond Tool Grinding Machine with 6Axis Robot
Brand: DEMINA
Price: 1 USD

Wholesale Fully Automatic CNC Diamond Tool Grinding Machine with 6-Axis Robot from china suppliers

MOQ : 1 Piece

Payment Terms : T/T

Precision : High Precision

Controlling Mode : CNC

Condition : New

Transport Package : Wooden Case

Supply Ability : 50 SETS PER YEAR

Processing Object : CNC Insert

Type : Tool Grinding Machine

Automatic Grade : Automatic

Model NO. : BT-150DZ

Specification : 2290mm*1650mm*2180mm

Trademark : DEMINA

Certification : ISO 9001

Packaging Details : WOODEN CASE

HS Code : 8460310000

Model Number : BT-150DZ

Origin : CHINA

Brand Name : DEMINA

Place of Origin : CHINA

Delivery Time : 60 DAYS

Abrasives : Grinding Wheel

Production Capacity : 50 Sets Per year

Contact Now

Description

BT-150DZ is composed of five axes including the grinding wheel oscillation axis, the grinding wheel inclination axis, the workpiece horizontal rotation axis, the workpiece feed axis, and the robot arm. The machine tool is suitable for the production of medium and large quantities of carbide insert., PCD insert and CBN insert. Its unique vision inspection system and electric cross worktable enable automatic centering and positioning. Equipped with a six-axis robotic arm, it can perform fully automated loading and unloading, achieving unmanned, automated, 24-hour continuous production, significantly reducing labor costs.

Main Parameters

Spindle and Grinding Wheel
Diameter of Grinding wheel	150mm
Grinding wheel center hole	40mm
Power of grinding spindle	5KW
Adjustable range of grinding speed(RPM)	1000～8,000RPM
Servo motor swing, adjustable oscillation frequency	0~60times/min
Grinding wheel movement range(X )	300mm
Changeable Clearance Angle	-5°~25°
Tool work-head
Table movement range in feed direction	100mm
Rotation range of workpiece in horizontal plane	270°
Linear scale resolution	0.001mm
Rotary axis resolution	0.001°
CCD Monitoring System
Max Magnification of Optical Microscope	0.7~4.5 times
Magnification of CCD Measuring System, roughly	70times
Dimensions and weight
Coolant Tank with Filter Paper	About 70 L
Overall Dimensions LWH	189016501980mm
Overall Weight With Coolant Tank	2400Kg
Power Supply
Electrical Supply	12KW
Voltage Requested	380V/Three phase /50Hz
